Name: Tile-Ready XPS Board Wall Panel Insulation Foam Board Genre
Brand: Hebei Huaou Insulation Materials Co., Ltd.
SKU: XPS01
Availability: InStock

Home Products XPS Foam

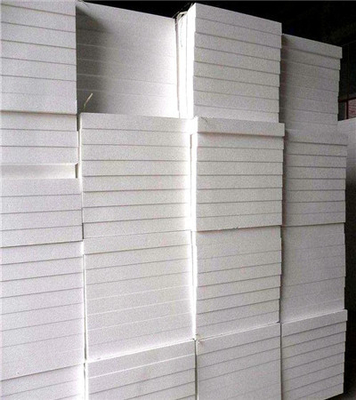

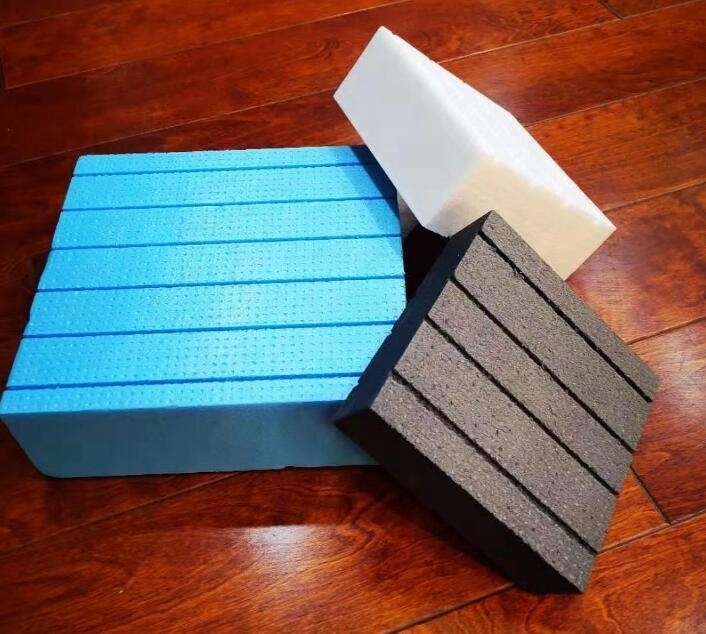

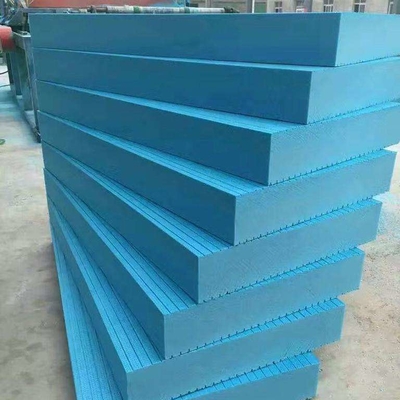

Tile-Ready XPS Board Wall Panel Insulation Foam Board Genre

Product Details:

Place of Origin:	Hebei, China
Brand Name:	HuaOu
Model Number:	XPS01

Contact Now

Detailed Product Description

Compressive Strength:	Other	Warranty:	1 Year
Material:	Fiberglass, Ceramic, Polystyrene	After-sale Service:	Online Technical Support, Other
Project Solution Capability:	Graphic Design, 3D Model Design, Total Solution For Projects, Others	Application:	Supermarket, Garage Shed, Storage Closet, Wall Insulation, Roof Insulation, Floor Insulation, Hotel, Apartment, Office Building, Hospital, School, Sports Venues, Mall, Leisure Facilities, Workshop, Warehouse, Farmhouse, Park, Courtyard, Other, Wall, Floor,
Design Style:	Southwestern	Flammability Rating:	B1
Type:	Extruded Polystyrene XPS Foam Board	Item Name:	Electric Heating Board Xps Thermal Insulation Energy Saving Board
Color:	Blue, White, Black, Yellow, Orange, Pink	Thickness:	17-150mm
Compression:	100~800Kpa	Density:	24-35kg/m3
Water Absorption:	≤1%	Flame Retardant:	B1, B2, Normal
Thermal Conductivity:	≤0.032W/m.k

Commodity	rock wool board,rock wool panel,rock wool sheet
Size	1200*600mm and other sizes available
Thickness	30 to 180mm
Density	50 to 180kgs/m3
Hydrophobic rate	≥98%
Combusion performance	A1 grade

technical data	Standard requirements	Measured results	remarks
Mass moisture absorption rate	≤1.0	0.7	GB/T-25975-2018TR
Long-term water absorption	≤1.5	1	GB/T-19686-2015
Slag ball content	≤7.0	5.9	GB/T-25975-2018TR
Hydrophobic rate	≥98.0	99.8	GB/T-25975-2018TR
Thermal conductivity	≤0.040	0.036	GB/T-25975-2018TR
acidity coefficient	≥1.8	1.9	GB/T-25975-2018TR
combustibility	Not burn	Combustion time 0	GB8624-2012
compressive strength	≥40	42	GB/T-25975-2018TR

Wholesale Insulation Mineralwool Panel 50mm Fire Rated Rock Wool

Rock wool board, also known as mineral wool board or rock fiber board, is a type of insulation material made from natural rock such as basalt, diabase, and other materials. It is manufactured through the process of melting these rocks at high temperatures and spinning them into fine fibers that are then compressed into boards. The resulting product is a lightweight, fire-resistant,and thermally insulating material that is commonly used in construction for various applications.

Key Features:
1. Thermal Insulation: Rock wool boards have a low thermal conductivity, making them highly effective in reducing heat flow through walls, roofs, and floors. This helps in maintaining consistent indoor temperatures and reducing heating and cooling costs.
2. Fire Resistance: One of the standout features of rock wool board is its exceptional fire resistance. It does not burn and can withstand high temperatures without releasing toxic smoke or gases, which makes it a preferred choice for fireproofing buildings and ensuring occupant safety.
3. Sound Absorption: Due to its fibrous structure, rock wool board also provides good sound insulation. It can help reduce noise transmission between rooms or from outside sources, creating quieter living and working environments.
4. Moisture Resistance: While not completely waterproof, rock wool board has a certain level of moisture resistance, which allows it to be used in areas prone to dampness without significant degradation of its insulating properties. However, it should not be used where it will be continuously exposed to water.
5. Environmental Friendliness: Rock wool production utilizes natural raw materials and can incorporate recycled content.
Additionally, the manufacturing process has a lower environmental impact compared to some other insulation materials.
6. Versatility: Rock wool boards come in different thicknesses, densities, and sizes to suit various applications, including
exterior walls, interior partitions, ceilings, and floors. They can be easily cut and shaped to fit around obstacles and
corners.
7. Durability: With proper installation and maintenance, rock wool boards can last for many years without losing their insulating efficiency or structural integrity.
Applications:
* Exterior wall insulation
* Roof insulation
* Floor insulation
* Partition walls
* Ceiling panels
* HVAC systems
* Industrial furnaces and ovens
* Soundproofing studios and recording booths
In summary, rock wool board is a reliable and efficient insulation solution that combines thermal performance, fire safety,
acoustic control, and environmental benefits into one product. Its versatility and durability make it suitable for a wide range of construction projects, from residential homes to commercial buildings and industrial facilities.

Application

1.Construction

Interior wall partition

Exterior wall composite system

Roof

Ceiling

2.corrosion protection and thermal energy industry

3.Industrial power plant

4.Ship

5.Agricultural

Company Introduction

Hebei Huaou Insulation Materials Co., Ltd is a comprehensive firm that specializes in the design, construction, processing,andsafety-related services. Operating as an integrated equipment and operation economic entity, we leverage advanced domestic technologies and equipment.
Featuring a team of industry experts in installation, construction, and management, our company is proficient in producing rockwool boards, pipes, aluminum silicate boards, pipes, glass wool, and pipes. We are adept at manufacturing tailored products catering to clients' specific requirements, ensuring scientific design and rational construction.
With a portfolio of over 180 projects, we possess a vast fund of management experiences in multiple domains. Our specialized knowledge and competitive edge allow us to deliver first-rate professional competence and create outstanding project outcomes.

PACKAGING, STORAGE AND TRANSPORT

Huaou brand rock wool roll is vacuum shrink packaging, rock wool board is plastic bag packaging, easy to handle, transport, storage and identification. Huaou brand also offers pallet packaging options and OEM services.

FAQ

1.Are you factory or trading company?
We are factory ,our factory founded in 2010 located in Dacheng,Langfang City, Hebei Province,near to our capital Beijing City .Our factory occupy 40000 square meter ,welcome your visit any time.

2.Is free sample available ?
Sample is available and small piece sample is free ,for big piece sample we will collect some surcharge which will be return to you when you order mass quantity .

3.what is your delivery time?
Generally the delivery will be within 1 weeks ,and some stock products can delivery any time as you need.

4.Is OEM or ODM service available?
Yes,we can provide OEM and ODM service

Contact Details

Hebei Huaou Insulation Materials Co., Ltd.
