Name: Exterior Wall Fire/heat Insulation Material XPS Tile Backer Board Can Be Sold in Special Shape.
Brand: Hebei Huaou Insulation Materials Co., Ltd.
Availability: InStock

Home Products XPS Tile Backer Board

Exterior Wall Fire/heat Insulation Material XPS Tile Backer Board Can Be Sold in Special Shape.

Product Details:

Place of Origin:	Hebei, China
Brand Name:	huaou

Contact Now

Detailed Product Description

Warranty:	1 Year	After-sale Service:	Online Technical Support, Other
Project Solution Capability:	Graphic Design, Total Solution For Projects	Application:	Building, Fireproof, Garage Shed, Hotel, Villa, Apartment, Office Building, School, Hospital, Sports Venues, Leisure Facilities
Design Style:	Contemporary	Shape:	Flake
Material:	Composite Material	Core Material:	Extruded Sheet
Thickness:	2in	Fire Rating:	3hr
Product Name:	XPS Tile Backer Board	Function:	Fire Insulation Waterproof
Color:	Customed Colors	Using Place:	Building Wall Fire Protection
MOQ:	200	Fire Resistance Performance:	Non Combustible(Class A1)

Product name	XPS Tile Backer Board
Material	Mortar + Mesh Cloth + xps Extruded Panel
Width	600cm
Length	2800-3200cm
Thickness	customized
Mass per unit area	25-35kg/㎡
water absorption	≤500g/㎡
bending load	≥2000N
Advantages	Eco-Friendly, Waterproof and Fireproof etc
Applications	Wall, Floor, Roof, Villa and Buildings etc.
Outside impact resistance	J level ≥ 10
Apparent density of insulation layer	22-35kg/m³
Thermal conductivity of the insulation layer	≤0.030W/(m·k)

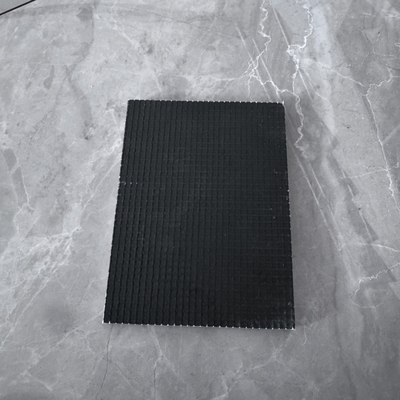

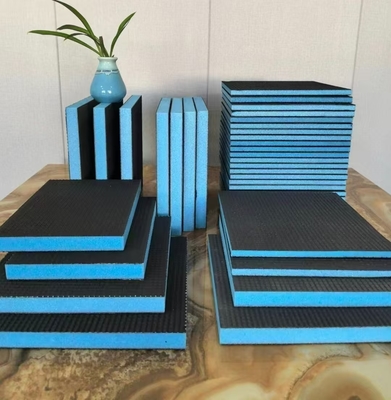

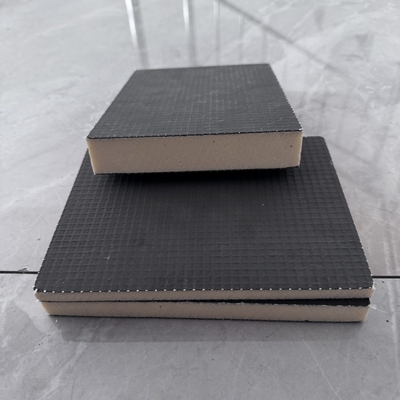

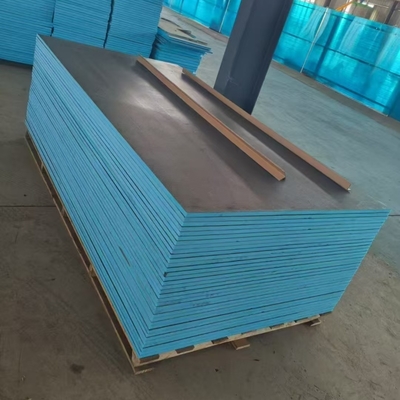

XPS Tile backer board

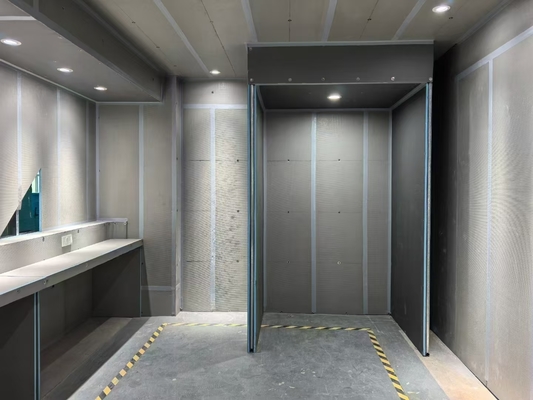

Tile Backer Board is the innovative alternatives to traditional cement backers.Its HCFC-FREE waterproof XPS core, fiberglass reinforced and cement coating gives the panels strength and vapor-retardant, making panels are perfect choice for a variety of interior and exterior applications, such as the underlayment for ceramic tiles, wooden floors and parallel to wall framing applied in bathroom, kitchen, underfloor heating system etc.

Advantages

① 100% waterproof, made of HCFC-FREE XPS foam
② High-rigidity and durability ③ Close bond to any tiling walls or floors
④ Available at various thickness and sizes ⑤ Compatibility to multiple substructures ⑥ Thermal insulation for saving energy bills
⑦ Vapor retardant against mildew ⑧ Light-weight, easy to handle and cut with utility knife

serial number

Test item

Detection basis

Index requirements

testing result

Single determination

Combustibility grade b (c)

Monomer combustion

Combustion growth rate index, W/s

GB/T 20284- 2006

≤250

accord with

Flame transverse vine

GB/T 20284- 2006

Did not reach the edge of the long wing of the sample.

accord with

Extension degree

Total heat release of 600s, MJ

GB/T 20284- 2006

≤15

accord with

Flammability (30s during ignition)

Combustion length

GB/T 8626-

Height of inner flame tip within 60s ≤150mm.

accord with

2007

Combustion phenomenon

GB/T 8626-

There is no burning drop within 60s.

accord with

2007

Oxygen index,%

GB/T 2406.2- 2009

≥30

30.5

accord with

Water vapor transmission coefficient, ng/(m s

GB/T 10801.2- 2018

≤3.0

2.4

accord with

Apparent density, kg/m

GB/T 6343-

≥35

36.1

accord with

2009

Compressive strength (deformation 10%),kPa

GB/T 8813-

≥350

366

accord with

2020

Thermal conductivity (average temperature 25℃),W/(m ·K)

GB/T 10295- 2008

≤0.030

0.03

accord with

Dimensional stability (70 2℃, 48h),%

GB/T 8811-

≤2.0

1.2

accord with

2008

Water absorption (soaking for 96h),%

GB/T 10801.2- 2018

≤1.0

0.8

accord with

Company Introduction

Hebei Huaou Insulation Materials Co., Ltd is a comprehensive firm that specializes in the design, construction,processing,andsafety-related services. Operating as an integrated equipment and operation economic entity, we leverage advanced domestic technologies and equipment.
Featuring a team of industry experts in installation, construction, and management, our company is proficient in producing rockwool boards, pipes, aluminum silicate boards, pipes, glass wool, and pipes. We are adept at manufacturing tailored products catering to clients' specific requirements, ensuring scientific design and rational construction.
With a portfolio of over 180 projects, we possess a vast fund of management experiences in multiple domains. Our specialized knowledge and competitive edge allow us to deliver first-rate professional competence and create outstanding project outcomes.

FAQ

1.Are you factory or trading company?
We are factory ,our factory founded in 2010 located in Dacheng,Langfang City, Hebei Province,near to our capital Beijing City .Our factory occupy 40000 square meter ,welcome your visit any time.

2.Is free sample available ?
Sample is available and small piece sample is free ,for big piece sample we will collect some surcharge which will be return to you when you order mass quantity .

3.what is your delivery time?
Generally the delivery will be within 2 weeks ,and some stock products can delivery any time as you need.

4.Is OEM or ODM service available?
Yes,we can provide OEM and ODM service
